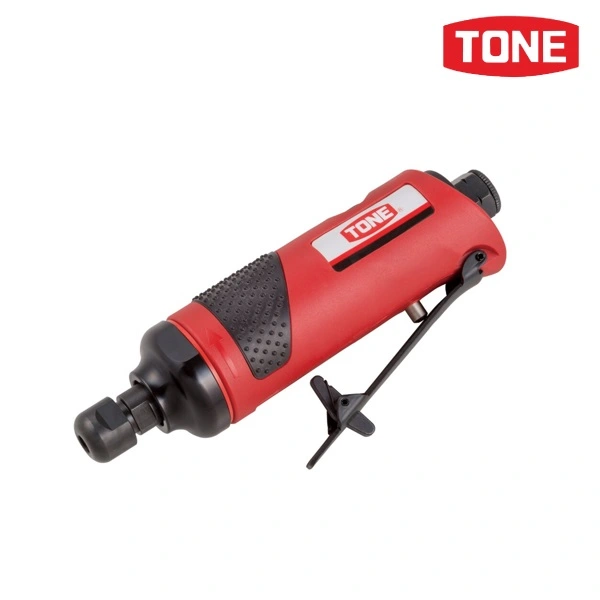

TONE – AGR01 AIR GRINDER
It is a compact grinder that is small, lightweight and excellent in workability.
Comes with a collet chuck with a shaft diameter of 3 mm and 6 mm. Equipped with rotation speed adjustment function.
For all metal polishing and deburring work.
Feature
TONE – AGR01 AIR GRINDER :
| output angle | Collet chuck |
| Tip shape | Collet chuck |
| Working air pressure (Mpa) | 0.62 |
| Joint thread diameter (mm) | Rc1/4 (PT1/4) |
| Air hose inner diameter (mm) | More than 10 |
| Material | Multiple |
| Single product mass (g) | 550 |
| Single product dimensions (mm) w | 164 |
| Single product dimensions (mm)d | 42 |
| Single product dimensions (mm) h | 68 |
| Quantity | 1 |
| Small box quantity | 12 |
Dimensional drawing
accessories
Plug: R1/4 (PT1/4), Spanner for whetstone replacement: 2, Collet 3mm: 1, Collet 6mm: 1
supplement
The product does not come with a tip grinding tool. Please purchase a tip grinding tool that meets the standard. A compressor output of 3 kW (4 PS) or more is recommended. Maximum air consumption (ntp) indicates air consumption converted to standard conditions (0°C, 1 atmospheric pressure = 0.1 Mpa). The maximum air consumption (op) indicates the air consumption in actual operating conditions (20°C, 0.62 Mpa).
| ยี่ห้อ | TONE |
|---|
