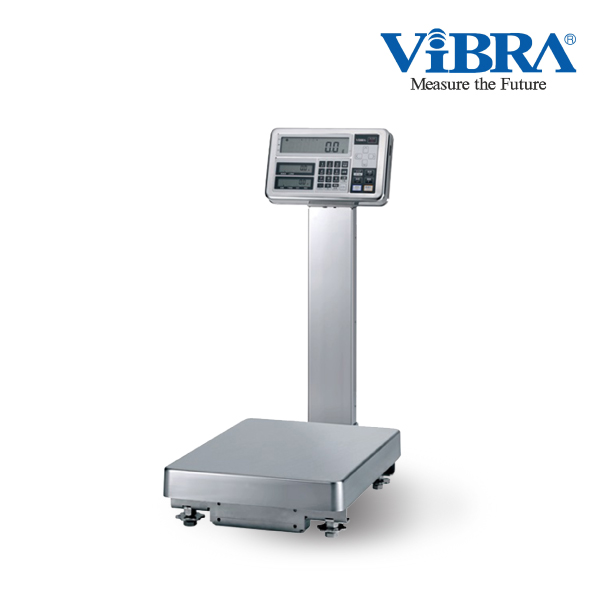

ViBRA FZ Series Anti-Explosion Electronic Scale
Common Specification
| Tare | : | Zero to Full weighing range |
| Span adjustment | : | Manual operation Span Adjustment with external calibration weight |
| ATEX approval | : | Ⅱ 1 G Ex ia Ⅱ B T4 Ga |
| Ingress Protection Rating | : | IP65 |
| OIML & EC approval | : | class Ⅱ |
| Over error | : | “o-Err” showed when Full weight range + 9 more digits over |
| Temperature and humidity range |
: | 5～ 40℃ (Scale & display), 0～40℃ (Power supply box), Up to 85％ rh (without the dew condensation) |
| Power source | : | Power supply box attached as standard |
| Output | : | RS232C or option connector |
| Indicator | : | i02 or i03 selectable *2 model name with i02: FZ 623Ex-i02 model name with i03: FZ 623Ex-i03 |
| Scale cable length | : | 5m for FZ 150K1GFEx and 300K1GFEx. 1m for all other models. *3 |
| Power supply cable | : | 5m. *4 |
Features
- Precision weighing in explosive gas area, category 1G (zone 0, 1 and 2)
- Wide weighing range from 620g up to 300kg.
- IP65 water and dust proof
Anti-Explosion Electronic Scale Specification

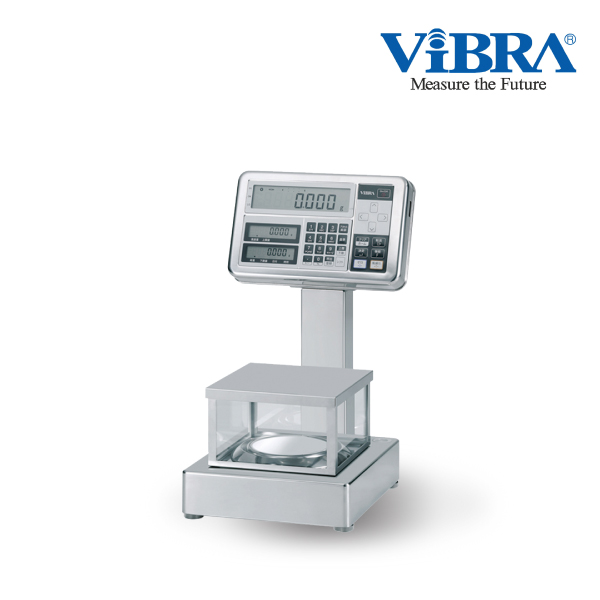

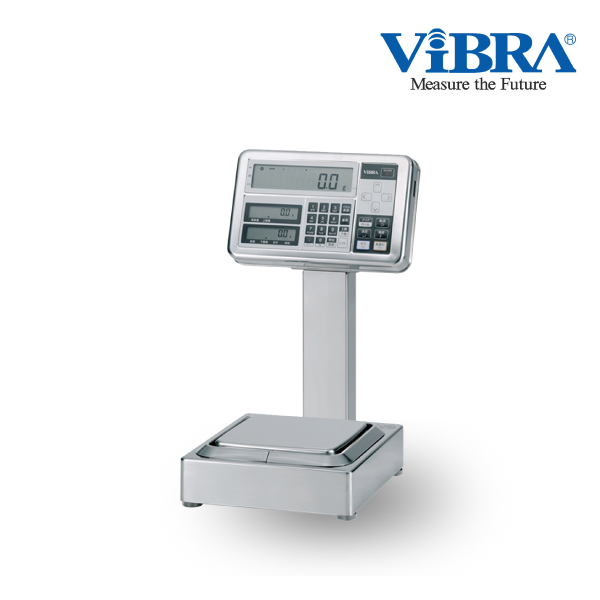

| Model name | FZ623Ex | FZ3202Ex | FZ6202Ex | FZ15001Ex |
| Capacity | 620g | 3200g | 6200g | 15000g |
| Readability (d) | 0.001g | 0.01g | 0.01g | 0.1g |
| Verification intervals (e) | 0.01g | 0.1g | 0.1g | 1g |
| Repeatability | 0.001g | 0.01g | 0.01g | 0.1g |
| Linearity | ±0.002g | ±0.02g | ±0.02g | ±0.2g |
| Stabilization time | 3.0 sec. | 3.0 sec. | 3.0 sec. | 3.0 sec. |
| Pan size | 140mm dia | 190 x 190mm | 190 x 190mm | 190 x 190mm |
| Dimensions(WDH) | 294 x 352 x 570mm | |||
| Model name | FZ30K0.1GEx | FZ60K0.1GEx | FZ100K1GEx | FZ200K1GEx |
| Capacity | 30kg | 60kg | 100kg | 200kg |
| Readability (d) | 0.1g | 0.1g | 1g | 1g |
| Verification intervals (e) | 1g | 1g | 10g | 10g |
| Repeatability | 0.1g | 0.1g | 1g | 1g |
| Linearity | ±0.1g | ±0.2g | ±2g | ±2g |
| Stabilization time | 3.0 sec. | 2.5 sec. | 2.5 sec. | 2.0 sec. |
| Pan size | 310 x 330mm | 380 x 530mm | 380 x 530mm | 380 x 530mm |
| Dimensions(WDH) | 310 x 444 x 672mm | 380 x 653 x 804mm | ||

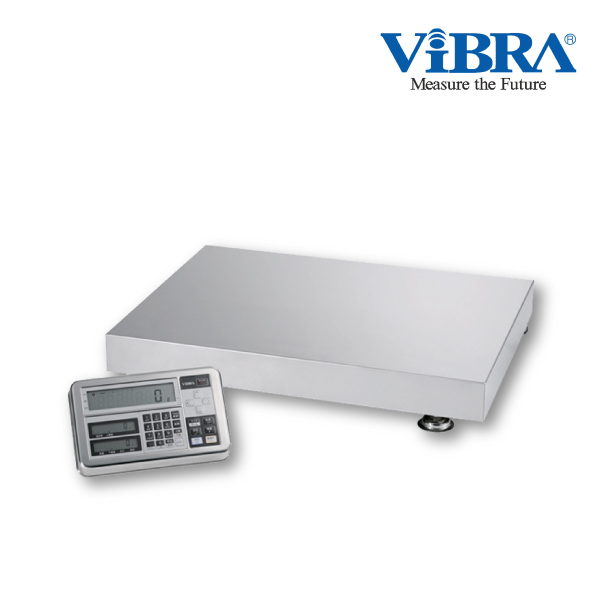

| Model name | FZ150K1GFEx | FZ300K1GFEx |
| Capacity | 150kg | 300kg |
| Readability (d) | 1g | 1g |
| Verification intervals (e) | 10g | 10g |
| Repeatability | 0.7g | 0.8g |
| Linearity | ±3g | ±5g |
| Stabilization time | 2.0 sec. | 2.0 sec. |
| Pan size | 800 x 600mm | 800 x 600mm |
| Dimensions(WDH) | 800 x 600 x x142mm | |
| ยี่ห้อ | ViBRA |
|---|
