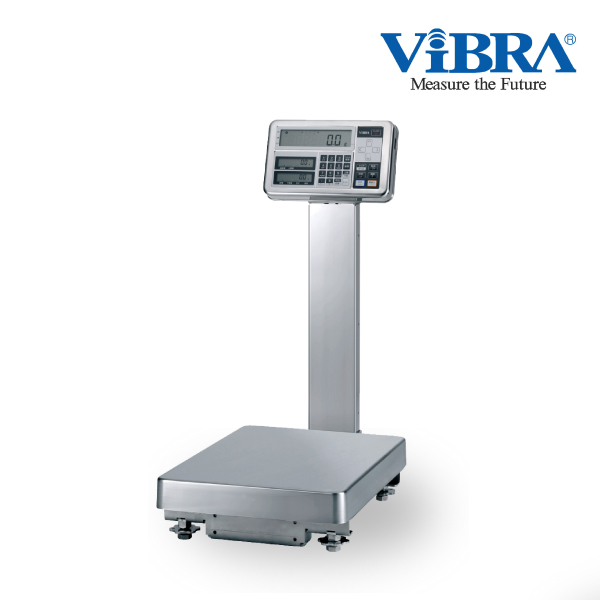

ViBRA FS Series Platform Scale
Common Specification
| Tare | : | Zero to Full weighing range |
| Span adjustment | : | Manual operation Span Adjustment with external calibration weight |
| Ingress Protection Rating | : | IP65 |
| Over error | : | “o-Err” showed when Full weight range + 9 more digits over |
| Temperature and humidity range |
: | 5 ～ 40℃、Up to 85％ rh (without the dew condensation) |
| Power source | : | AC adapter Input 100-240VAC / Output 6VDC and dry-cell battery *1 |
| Output | : | RS232C(D’ sub 9Pin )+Printer out put(Din 8Pin) |
| Scale cable length | : | 5m for FS 150K1GF and 300K1GF.1m for all other models. *2 |
Features
- High precision weighing in manufacturing process
- Wide weighing range from 620g up to 300kg
- IP65 water and dust proof
- Dry-cell battery drive as standard feature
- OIML and EU class2 approved
Platform Scale Specification
| Model name | FS623 | FS3202 | FS6202 | FS15001 |
| Capacity | 620g | 3200g | 6200g | 15000g |
| Readability (d) | 0.001g | 0.01g | 0.01g | 0.1g |
| Verification intervals (e) | 0.01g | 0.1g | 0.1g | 1g |
| Repeatability | 0.001g | 0.01g | 0.01g | 0.1g |
| Linearity | ±0.002g | ±0.02g | ±0.02g | ±0.2g |
| Stabilization time | 3.0 sec. | 3.0 sec. | 3.0 sec. | 3.0 sec. |
| Pan size | 140mm dia | 190 x 190mm | 190 x 190mm | 190 x 190mm |
| Dimensions(WDH) | 294 x 352 x 570mm | |||
| Model name | FS30K0.1G | FS60K0.1G | FS100K1G | FS200K1G |
| Capacity | 30kg | 60kg | 100kg | 200kg |
| Readability (d) | 0.1g | 0.1g | 1g | 1g |
| Verification intervals (e) | 1g | 1g | 10g | 10g |
| Repeatability | 0.1g | 0.1g | 1g | 1g |
| Linearity | ±0.1g | ±0.2g | ±2g | ±2g |
| Stabilization time | 3.0 sec. | 2.5 sec. | 2.5 sec. | 2.0 sec. |
| Pan size | 310 x 330mm | 380 x 530mm | 380 x 530mm | 380 x 530mm |
| Dimensions(WDH) | 310 x 444 x 672mm | 380 x 653 x 804mm | ||
| Model name | FS150K1GF | FS300K1GF |
| Capacity | 150kg | 300kg |
| Readability (d) | 1g | 1g |
| Verification intervals (e) | 10g | 10g |
| Repeatability | 0.7g | 0.8g |
| Linearity | ±3g | ±5g |
| Stabilization time | 2.0 sec. | 2.0 sec. |
| Pan size | 800 x 600mm | 800 x 600mm |
| Dimensions(WDH) | 800 x 600 x x142mm | |
| ยี่ห้อ | ViBRA |
|---|
