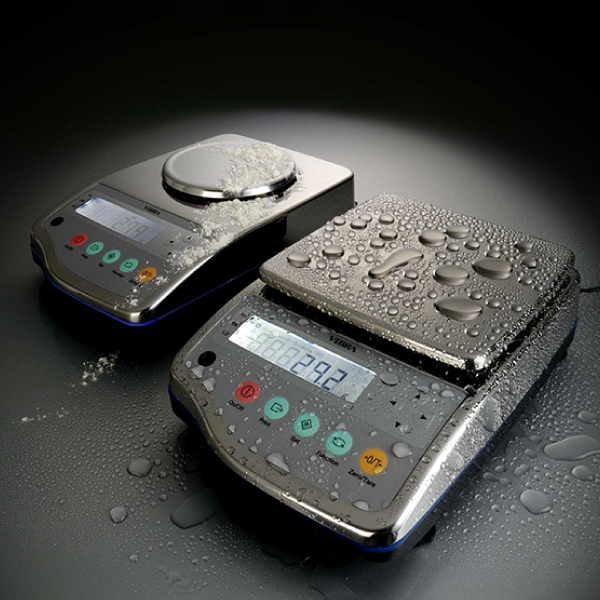

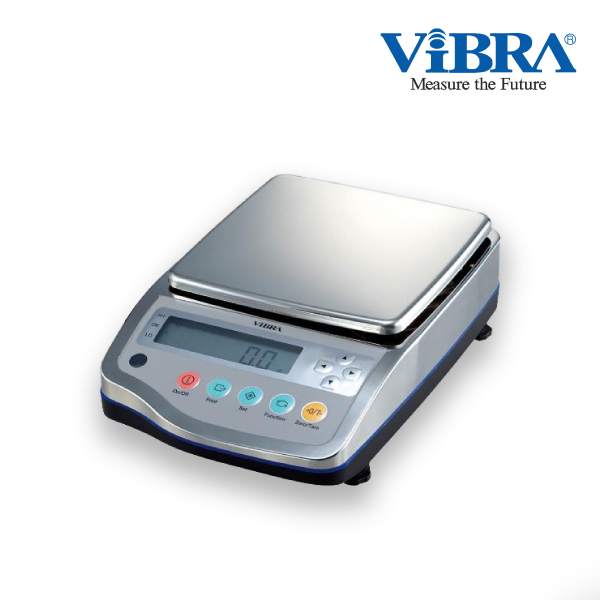

ViBRA CJ Series Precision Balance
Common Specification
Tare | : | Zero to Full weighing range |
Span adjustment | : | Manual operation Span Adjustment with external calibration weight |
Ingress Protection Rating | : | IP65 |
Over error | : | “o-Err” showed when Full weight range + 9 more digits over |
Temperature and humidity range |
: | 0 ~ 40℃、Up to 80% rh (without the dew condensation) |
Power source | : | AC adapter Input 100-240VAC / Output 5.95VDC |
Output | : | RS232C(D ‘sub 9P) |
Features

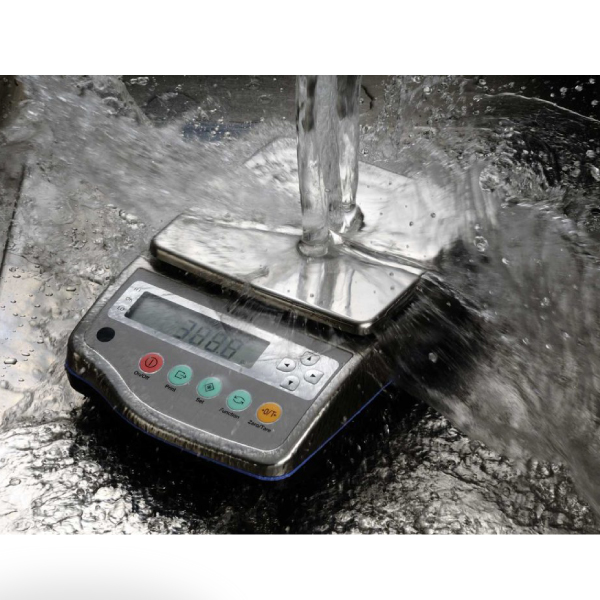

- IP65, water and dust proof
- Reliable measurement even in tough condition
Precision Balance Specification
Model name | CJ-820E |
Capacity | 820g |
Readability (d) | 0.01g |
Repeatability | 0.01g |
Linearity | ±0.01g |
Pan size | 140mm dia |
Dimensions(WDH) | 206×312×89mm |
Model name | CJ-3200E | CJ-8200E | CJ-15KE |
Capacity | 3200g | 8200g | 15000g |
Readability (d) | 0.1g | 0.1g | 1g |
Repeatability | 0.1g | 0.1g | 1g |
Linearity | ±0.1g | ±0.1g | ±1g |
Pan size | 190×190mm | ||
Dimensions(WDH) | 206×312×89mm |
