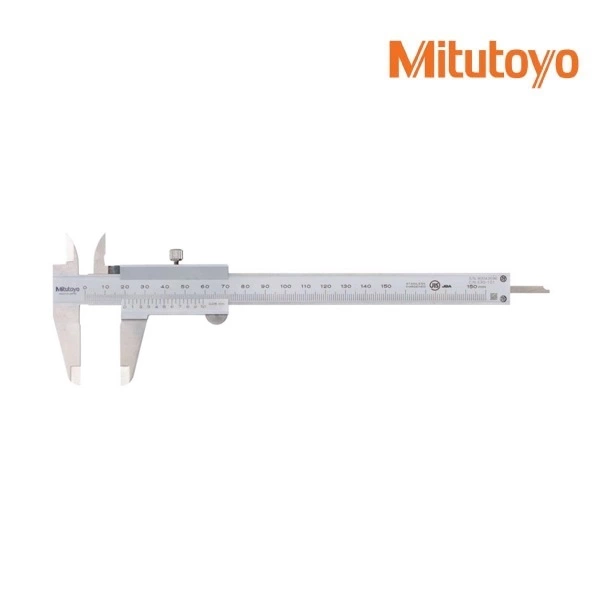

MITUTOYO SERIES 530 VERNIER CALIPER
Standard Model
FEATURES
- Measures OD (outside diameter), ID (inside diameter), depth, and steps.
- The small vernier face angle (14°) provides easy reading.
- Dual reading scales on vernier. (metric/inch and inch models only).
- Lock screw for holding the sliding jaw position.
- Carbide-tipped jaw-type calipers are available.
- Supplied with vinyl holster in fitted carton. Except 24” / 600mm models are carton only. 40” / 1000mm supplied in wooden case.
Download: Mitutoyo Series 530 Data Sheet
SPECIFICATIONS
Metric
| Range | Order No. | Accuracy | Graduation | Remarks |
| 0 – 150mm | 530-102 | ±0.05mm | 0.05mm | ø 1.9mm Depth bar |
| 0 – 150mm | 530-101 | ±0.05mm | 0.05mm | — |
| 0 – 150mm | 530-320 | ±0.05mm | 0.05mm | Carbide-tipped jaws for OD measurement |
| 0 – 150mm | 530-335 | ±0.05mm | 0.05mm | Carbide-tipped jaws for OD & ID measurement |
| 0 – 150mm | 530-122* | ±0.03mm | 0.02mm | High-accuracy model |
| 0 – 200mm | 530-108 | ±0.05mm | 0.05mm | — |
| 0 – 200mm | 530-321 | ±0.05mm | 0.05mm | Carbide-tipped jaws for OD measurement |
| 0 – 200mm | 530-123* | ±0.03mm | 0.02mm | High-accuracy model |
| 0 – 300mm | 530-109 | ±0.08mm | 0.05mm | — |
| 0 – 300mm | 530-322 | ±0.08mm | 0.05mm | Carbide-tipped jaws for OD measurement |
| 0 – 300mm | 530-124* | ±0.04mm | 0.02mm | High-accuracy model: ±0.04mm |
| 0 – 600mm | 530-501** | ±0.1mm | 0.05mm | — |
| 0 – 1000mm | 530-502 ** | ±0.15mm | 0.05mm | — |
*Graduation: 0.02mm
**No depth measuring bar
Metric/Inch with metric/inch dual scale
| Range | Order No. | Accuracy |
Vernier Graduation |
Remarks | |
| Lower Scale | Upper Scale | ||||
| 0 – 150mm / 0 – 6” | 530-104 | ±0.05mm | 0.05mm | 1/128″ | — |
| 0 – 150mm / 0 – 6” | 530-316 | ±0.05mm | 0.05mm | 1/128″ | — |
| 0 – 150mm / 0 – 6” | 530-312* | ±0.03mm | 0.02mm | .001″ | High-accuracy model |
| 0 – 200mm / 0 – 8” | 530-114 | ±0.05mm | 0.05mm | 1/128″ | — |
| 0 – 200mm / 0 – 8” | 530-118* | ±0.03mm | 0.02mm | .001″ | High-accuracy model |
| 0 – 300mm / 0 – 12” | 530-115 | ±0.08mm | 0.05mm | 1/128″ | — |
| 0 – 300mm / 0 – 12” | 530-119* | ±0.04mm | 0.02mm | .001″ | High-accuracy model |
*Graduation: 0.02mm
Inch with inch/inch dual scale
| Range | Order No. | Accuracy |
Vernier Graduation |
Remarks | |
| Lower Scale | Upper Scale | ||||
| 0 – 6″ | 530-105 | ±.0015” | .001” | 1/128″ | — |
| 0 – 8″ | 530-116 | ±.0015” | .001” | 1/128″ | — |
| ยี่ห้อ | MITUTOYO |
|---|
