Download: Mitutoyo Series 2 Data Sheet
SPECIFICATIONS
Metric (ANSI/AGD type) Stem dia. 3/8″, #4-48 UNF Thread Yellow Dial Face
| Graduation | Range | Range / Rev | Dial reading | Order No. w/ lug |
Order No. Flat-back |
Accuracy First 2.5 Rev |
Accuracy Overall |
Measuring force |
| 0.001mm | 1mm | 0.2mm | 0-100-0 | 2109S-11 | 2109SB-11 | ±0.003mm | ±0.004mm | 1.5N or less |
| 0.001mm | 5mm | 0.2mm | 0-100-0 | 2119S-11 | 2119SB-11 | ±0.007mm | ±0.01mm | 1.5N or less |
| 0.01mm | 2.5mm | 1mm | 0-100 | 2230S-01 | 2230SB-01 | ±0.01mm | ±0.01mm | 1.4N or less |
| 0.01mm | 2.5mm | 1mm | 0-50-0 | 2231S-01 | 2231SB-01 | ±0.01mm | ±0.01mm | 1.4N or less |
| 0.01mm | 10mm | 1mm | 0-100 | 2046S-01 | 2046SB-01 | ±0.01mm | ±0.013mm | 1.4N or less |
| 0.01mm | 10mm | 1mm | 0-100 | 2046S-11 | 2046SB-11 | ±0.01mm | ±0.013mm | 1.4N or less |
| 0.01mm | 10mm | 1mm | 0-50-0 | 2047S-01 | 2047SB-01 | ±0.01mm | ±0.013mm | 1.4N or less |
| 0.01mm | 10mm | 1mm | 0-50-0 | 2047S-11 | 2047SB-11 | ±0.01mm | ±0.013mm | 1.4N or less |

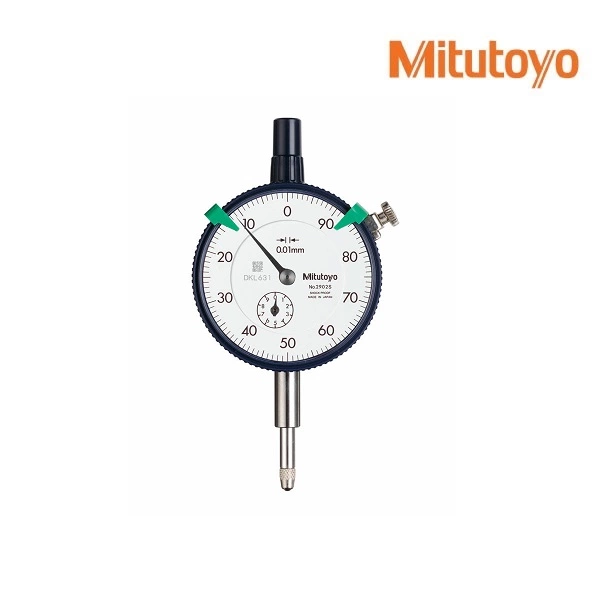

| 0.01mm | 10mm | 1mm | 100-0 | 2902S-01 | 2902SB-01 | ±0.01mm | ±0.013mm | 1.4N or less |
| 0.01mm | 20mm | 1mm | 0-100 | 2050S-01 | 2050SB-01 | ±0.01mm | ±0.02mm | 2.0N or less |
| 0.01mm | 20mm | 1mm | 0-100 | 2050S-11 | 2050SB-11 | ±0.01mm | ±0.02mm | 2.0N or less |
| 0.01mm | 25mm | 1mm | 0-100 | 2056S-01 | 2056SB-01 | ±0.01mm | ±0.025mm | 2.5N or less |
(Unit: mm)
| Order No. | A | B | C |
| 2109S-11 | 48.8 | 51.4 | 9.3 |
| 2119S-11 | 48.8 | 55.8 | 13.7 |
| 2230S-01 | 48.8 | 53.6 | 11.5 |
| 2231S-01 | 48.8 | 53.6 | 11.5 |
| 2046S-01 | 48.8 | 61.1 | 19.0 |
| 2046S-11 | 48.8 | 61.1 | 19.0 |
| 2047S-01 | 48.8 | 61.1 | 19.0 |
| 2902S-01 | 48.8 | 61.1 | 19.0 |
| 2050S-01 | 38.8 | 71.1 | 29.0 |
| 2050S-11 | 38.8 | 71.1 | 29.0 |
| 2056S-01 | 38.8 | 76.1 | 34.0 |
| ยี่ห้อ | MITUTOYO |
|---|
