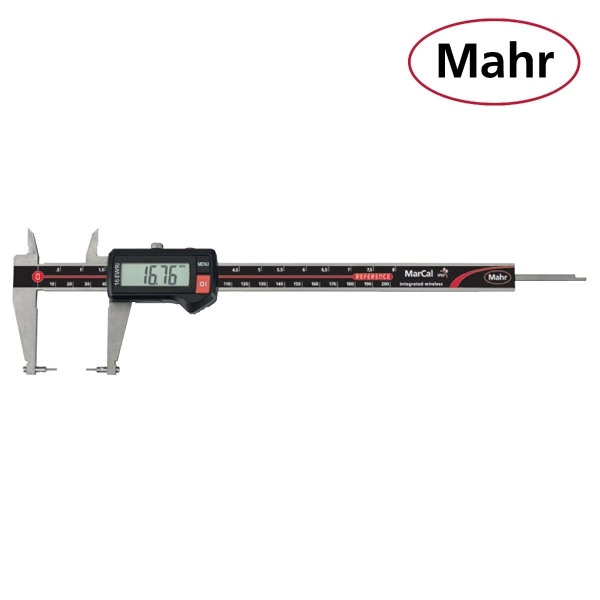

Mahr MarCal 16 EWRi-V Digital Universal Caliper

FEATURES

High contrast analog display
Locking screw above
Lapped guideway
Measuring blade for inside measurements
Slide and beam made of hardened stainless steel
Step measuring function
Immediate measurements due to the Reference System
Raised guideway for the protection of the scale
Excellent resistance against dust, coolants and lubricants
Dirt wipers are integrated in the slide
SoftwareMarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS232 interface)
Digit height : 11 mm
Data interface : Integrated wireless
Energy supply : Battery life approx. 3 years (approx. 0.5 in wireless mode)
IP protection category : IP 67
Package contains : battery, instruction manual, case, Setting gage for inside measurement 16 Eel, measuring force device 16 Ec, depth measuring bridge 16 Em, anvils for outside measurement 16 Eea 1– 3, anvils for inside measurement 16Eei 1– 3

รหัสสินค้า: TMA-22 หมวดหมู่: Dimension, สินค้า

Download: Mahr MarCal 16 EWRi-V Data Sheet

FUNCTIONS

TECHNICAL DATA

Order no.	Type	Measuring range Measuring range inch		Numerical increment	Error limit Error limit inches (text)		Standard	Depth rod Incl. accessories
mm			inch	mm/inch	mm	inch
4118907	16 EWRi-V	0 – 200	0 – 8”	0.01 / .0005”	0.03	.001”	DIN 862	rectangular	•

ยี่ห้อ	Mahr
