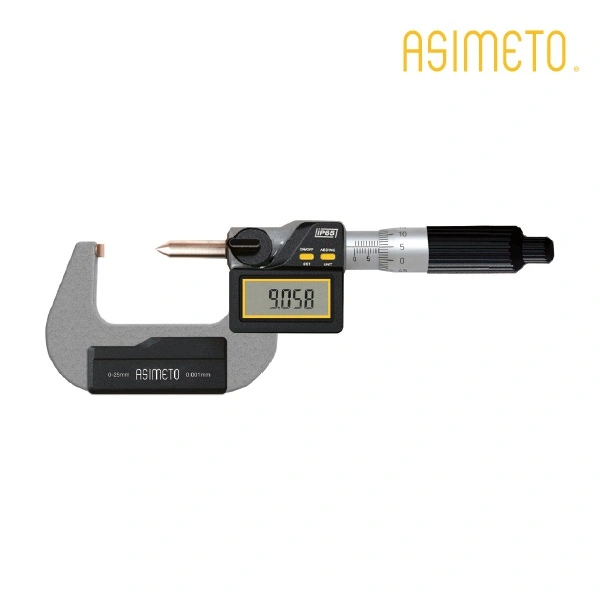

FEATURES
- Resolution : Digital reading: .00005″ / 0.001mm
- Ratchet stop
- For measuring the height of crimp contacts
- Carbide tipped measuring faces
- Grey painted steel frame
- Inch/Metric conversion
- Upon switching on the display will read the actual absolute measuring position
- Automatic On/Off to maximize battery life
- Absolute or incremental measuring modes
- Support Bluetooth data transmission Bluetooth data output: 901-01-5
- Protection level IP65

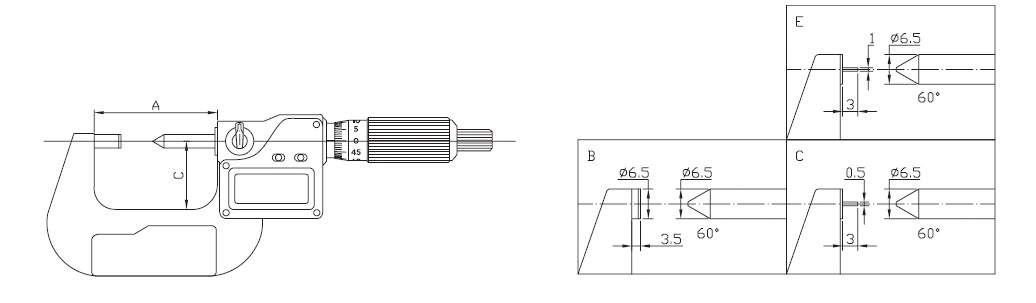

| Anvil Type B | Anvil Type C | Anvil Type E | Inch | Dimensions | ||
| Code No. | Code No. | Code No. | Range | Accuracy | A | C |
| 135-01-1 | 135-01-3 | 135-01-5 | 0-1″ | ±.0001″ | 34.4mm | 24mm |
| 135-02-1 | – | – | 1-2″ | ±.0002″ | 59.4mm | 32mm |
| 135-03-1 | – | – | 2-3″ | ±.0002″ | 84.8mm | 44.5mm |
| 135-04-1 | – | – | 3-4″ | ±.0002″ | 110.2mm | 57mm |
| Anvil Type B | Anvil Type C | Anvil Type E | Metric | Dimensions | ||
| Code No. | Code No. | Code No. | Range | Accuracy | A | C |
| 135-01-0 | 135-01-2 | 135-01-4 | O-25mm | ±0.002mm | 34.4mm | 24mm |
| 135-02-0 | – | – | 25-50mm | ±0.002mm | 59.4mm | 32mm |
| 135-03-0 | – | – | 5O-75mm | ±0.003mm | 84.8mm | 44.5mm |
| 135-04-0 | – | – | 75-100mm | ±0.003mm | 110.2mm | 57mm |
| ยี่ห้อ | ASIMETO |
|---|
