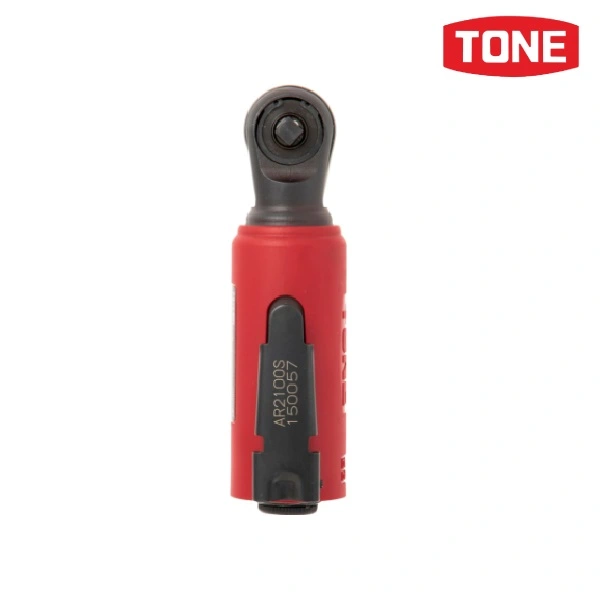

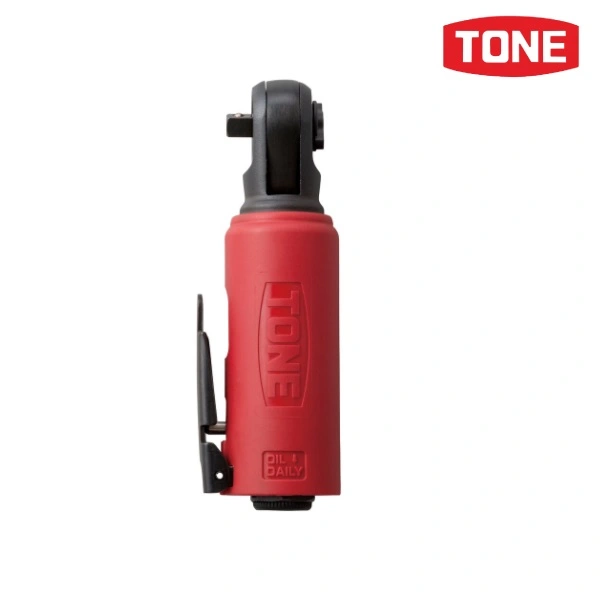

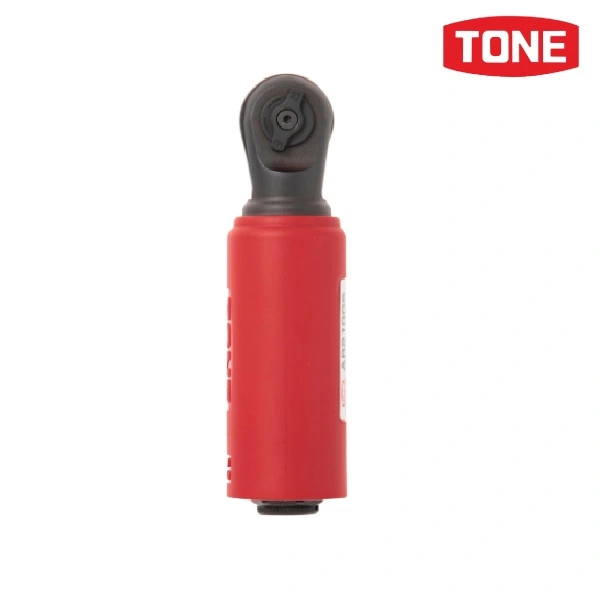

TONE – AR2100S STUBBY AIR RATCHET WRENCH : A short pneumatic ratchet wrench of a swing type for which workability has been emphasized.
Features
- Easy-to-grip slip-resistant double-molded grip (elastomer).
- Rotating joint that prevents the hose from twisting.
- The output can be adjusted by the degree that the switch is pulled.

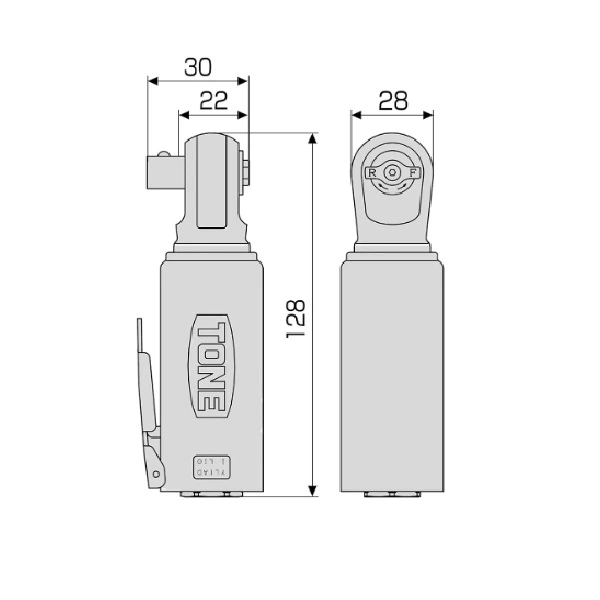

- Total length: 128 mm, output angle: 9.5 mm.
- For attaching/removing bolts/nuts in narrow places that are difficult to work in, such as for vehicle maintenance or assembly lines.
- Slip-resistant double-molded grip.
- It can switch the forward/reverse rotation.
Applications
- For tightening/loosening of bolts/nuts.
Rated Max. Torque | 34Nㆍm |
No-load Speed | 300min-1[rpm] |
Air Pressure | 0.62MPa |
Max Air Consumption | 510 ℓ/min (ntp)
75.4 ℓ/min (op) |
Air Inlet | Rc1/4 (PT1/4) |
Air Hose Inner Dia. | 10mm < |
Adaptable Bolts | M10 (Class 4.6) |
Weight | 0.48kg (Main Body) |
