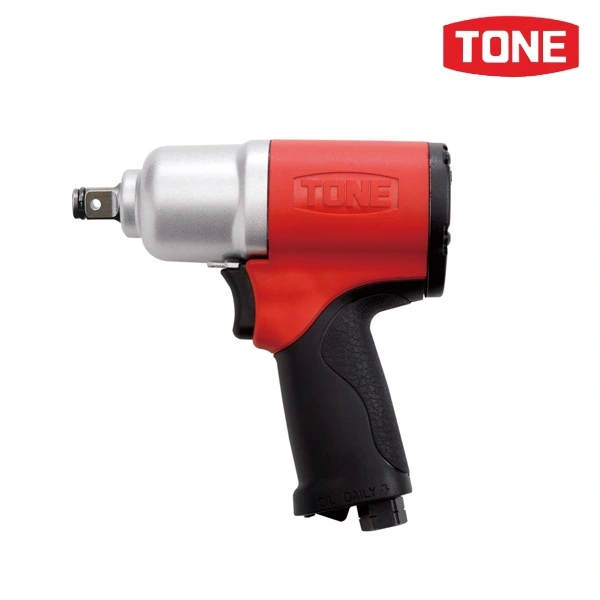

TONE : AI4160 AIR IMPACT WRENCH
Features
TONE : AI4160 AIR IMPACT WRENCH
- For tightening/loosening bolts/nuts or changing car tires.
- Realizes light weight of 1.2 kg with magnesium alloy hammer case and highly rigid resin body.
- Produces stable blow with little recoil by mounting double hammers with excellent durability and power source device.
- Equipped with a power selector lever for 3-step forward rotation and 2-step reverse rotation.
- Allows step-less output adjustment by pulling a switch.
- Adopts a soft grip at the handle part, which reduces vibration.
- Swivel joint to prevent the air hose from twisting.
Specification
Rated Max. Torque | 470 Nㆍm |
No-load Speed | 10,000 min-1[rpm] |
Air Pressure | 0.62 Mpa |
Max Air Consumption |
858 ℓ/min (ntp) |
128 ℓ/min (op) | |
Air intake | Rc1/4 (PT1/4) |
Air Hose Inner Dia. | 10 mm < |
Adaptable Bolts | M16 (Auto Wheel Nut) |
Weight | 1.2 kg (Main Body) |
