Common Specification
Tare | : | Zero to Full weighing range |
Span adjustment | : | Manual operation Span Adjustment with external calibration weight |
Over error | : | “o-Err” showed when Full weight range + 9 more digits over |
Temperature and humidity range |
: | 5 ~ 35℃ (E type) & 10~30℃ (CE type), Up to 80% rh(without the dew condensation) |
Power source | : | AC adapter Input 100-240VAC / Output 12VDC |
Output | : | Nil |
Features
- Highly usable basic applications
- Short stabilization time and stable indication

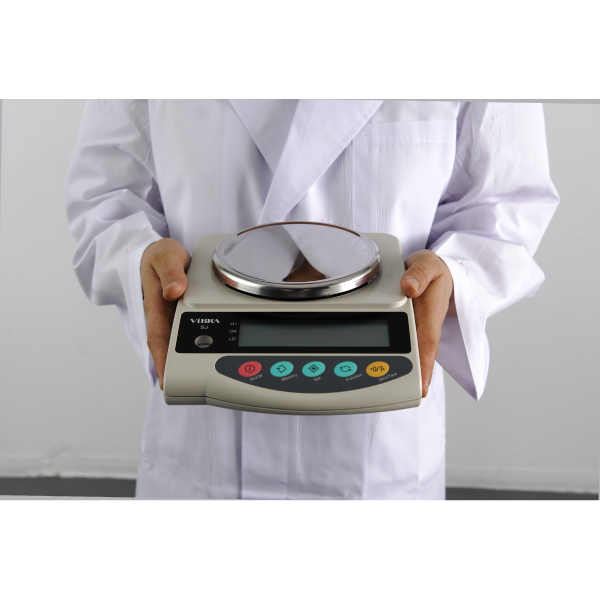

- Portability
Specification
Model name | SJ-220CEN | SJ-420CEN | SJ-620CEN | SJ-1200CEN |
Capacity | 220g | 420g | 620g | 1200g |
Readability (d) | 0.01g | 0.01g | 0.01g | 0.1g |
Verification intervals (e) | 0.01g | 0.01g | 0.1g | 0.1g |
Accuracy class | Ⅱ | Ⅱ | Ⅱ | Ⅱ |
Repeatability | 0.01g | 0.01g | 0.1g | 0.1g |
Linearity | ±0.01g | ±0.01g | ±0.01g | ±0.1g |
Stabilization time | 2.5 sec. | 2.0 sec. | 2.0 sec. | 2.0 sec. |
Pan size | 140mm dia | 170x140mm | ||
Dimensions(WDH) | 182×235×75mm |
Model name | SJ-2200CEN | SJ-4200CEN | SJ-6200CEN | SJ-12KCEN |
Capacity | 2200g | 4200g | 6200g | 12000g |
Readability (d) | 0.1g | 0.1g | 0.1g | 1g |
Verification intervals (e) | 0.1g | 0.1g | 1g | 1g |
Accuracy class | Ⅱ | Ⅱ | Ⅱ | Ⅱ |
Repeatability | 0.1g | 0.1g | 1g | 1g |
Linearity | ±0.1g | ±0.1g | ±0.1g | ±1g |
Stabilization time | 2.5 sec. | 2.5 sec. | 3.0 sec. | 2.5 sec. |
Pan size | 180×160mm | |||
Dimensions(WDH) | 192×265×87mm |
