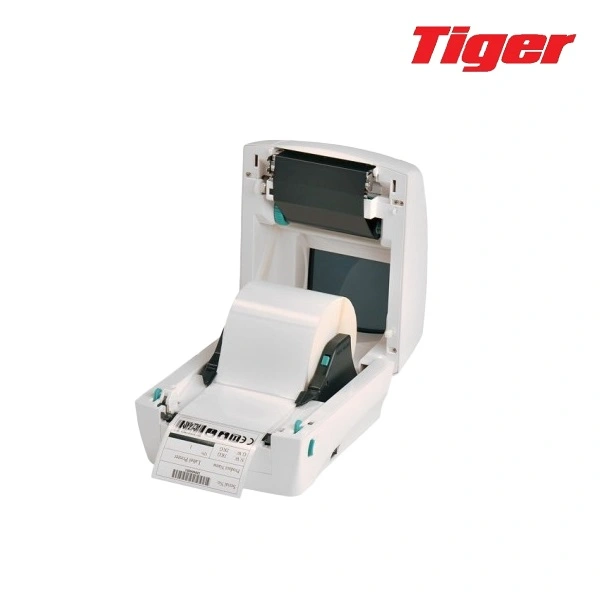

TIGER TPL-01H – Sticker printer for weighing scales

Multi-function stand-alone operation Features

• No PC Operating.
• Easy Forms Update and Easy Data Storage via Micro SD card
• Variety of external devices connections (USB-Keyboard, USB-Scanner, Scale, Counter)
• Bar Drawer easily edit form
• Convenient form operation
• Multilingual LCD display

Specifications

• CPU AND MEMORY
• CPU : 32-bit CPU
• 128 SDRAM, 128 Flash ROM, micro SD slot (Up to 32GB)

PRINT

• RESOLUTION : 203 dpi/300 dpi
• PRINT MODE : Direct Thermal and Thermal Transfer
• PRINT SPEED : 1″ to 5″ ips (203dpi), 6″ ips (Option)
• MAX. PRINT LENGTH : 150 inches
• PRING WIDTH : 4.1″ (104mm)
• BARCODE :
  1D :Code39, Code93,Code128 UCC, Code128 auto, Codabar, EAN8, EAN13, Interleaved 2
  of 5, UCC/EAN 128, UPC A, UPC E, UPC Interleaved 2 of 5
  2D : Data Matrix, MaxiCode, PDF417
• FONT : 5 internal expandable bitmap fonts (alpha-numeric)
  2 internal expandable bitmap fonts (numeric only) Downloadable soft font
  4 directions : 0, 90, 180, 270 degrees
• IMAGE : PCX, Direct binary graphic

DISPLAY : Backlight LCD display 128×64 dots

CONTROL PANEL : 4 multi-functional keys, 4 status LED light, 1 error LED light

MEDIA

• WIDTH : 0.59″~4.33″(15mm~110mm)
• MEDIA ROLL DIAMETER : ID-1″ (25.4mm)/OD-Max. 5″(127mm)
• MEDIA THICKNESS : 0.002″ (0.06mm) to 0.0075″ (0.2mm)
• MEDIA TYPE : Continuous, die-cut, tag, fan-fold, black mark

INTERFACE : Serial, USB master and slave, Ethernet 10/100Mbps (option)
POWER : Switching power adapter – Input : 100 to 240V/Output : 24V
AUDIO : Beep sound when error occurs
OPTION : Wifi , Bluetooth, stacker, Peeler kit, Cutter, Ethernet module
OPERATING TEMPERATURE : 5C to 45*C(40*F to 112.9*F)
PRINTER DIMENSION : 200(W) x 263(L) x 188(H) mm, Weight : 2KG
CERTIFICATION : CE, FCC class B, CCC, CB
