CAS ECB SERIES COUNTING SCALE

ECB Series has a capacity that ranges from 30kg to 250kg,with 1/600,000 (internal) and 1/15,000 (external) resolution.
ECB has various uses within manufacturing, packing, farming industries and tool shops. Additionally, the ECB series has a
large memory space for storing items. It is possible capable of connecting to ticket/label printers or a personal computer
through RS-232C interface.

• Up to 124 PLUs’ storable memory space:
• 24 PLUs’ Direct memory key&100 PLUs’ Indirect memory space
• Ticket / Label printer (optional)
• Large LCD display (23.5mm)
• Check-weight / Count with beep sounds

FEATURES

• 1/15,000 External resolution , 1/600,000 Internal resolution for accurate counting
• Storable PLU memory space (Unit weigh/Tare / Item No./Address No.) 24 PLUs’ Direct key, 100 PLUs’ Indirect key
• Check-weight / count function with beep sounds
• Embossed key pad
• Auto power-off function
• Ticket / Label printing via RS-232C interface
• Rechargeable battery (included)
• Auto zero tracking
• AC adapter (included)
• Dust protection cover (included)

ACCESSORIES

• Ticket printer (DEP-50)
• Label printer (DLP-50)

High resolution for accurate counting

1/600,000 internal and 1/15,000 external resolution are enhanced for more accurate counting. ECB counting scale is
engineered for precise and high speed operation applications.

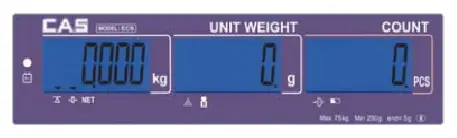

3 LCD displays for counting

Weight, Unit weight and Count are clearly shown with three individual LCD displays.

Various outputs

ECB is capable of connecting with Ticket /Label printers or personal computers through RS-232C interface. Also, CAS provides the
label format edit program for various applications.

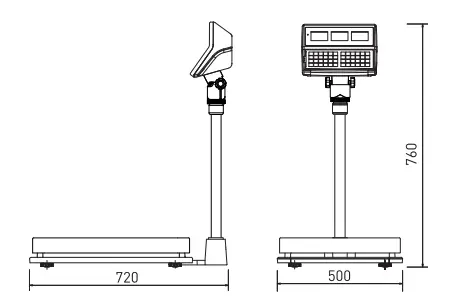

DIMENSIONS
