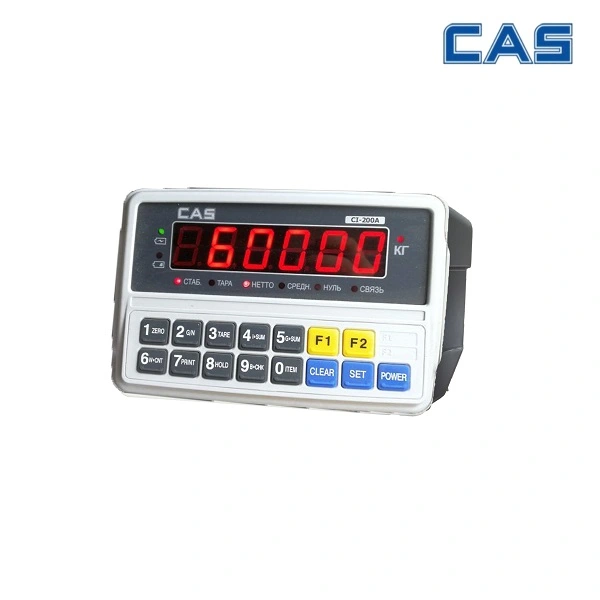

CAS CI-200A SERIES WEIGHING INDICATOR

CAS CI-200A SERIES WEIGHING INDICATOR

Applicable for various weighing applications, with the added flexibility of manually setting functions via numeric keys.
With various power supply options, the Cl-200A series is highly portable and
ideal for environments where power outlets are not available or power outages often occur.

SPECIFICATIONS

FEATURES

● Simple and prompt full digital calibration
● High A/D conversion speed (80 times/sec)
● High resolution 1/10,000
● Multi-calibration
● Weight back-up function
● Weight Comparison: Hi, Low, OK (only LCD)
● Numeric keys & function keys
● Various power supplies [DC adaptor, Rechargeable battery or AA size dry battery x 6 (option)] ● 4 & 6 wire load cell support
● 2 serial ports
– Standard: 1 port
– Option: 1 additional port (for PC, Printer, Remote display communication, etc)
● Multi-purpose cradle
● Interface
– Standard: RS-232C
– Option: RS-422, RS-485

OPTIONS

● Pole bracket
● Dry battery holder
● 1 additional serial port
● Remote display
● Printer (DLP-50, DEP-50)
● RS-422/RS-485 Interface

Numeric keys and 5 function keys

1) Set functions using numeric keys You can easily input numerals to set the functions of
the CI-200A series indicator using the numeric keys.

2) Short cut keys With short cut keys (F1 & F2), you are able to switch
quickly and easily to your preferred or mosty commonly used functions.

Various power supplies

– The CI-200A series can be operated with a DC adaptor, rechargeable battery or dry battery (option).
The ability to use a rechargeable battery or dry battery increases portability and allows
the indicator to be used in environments where little or no power is available

Multi-Purpose Cradle(MPC)TM system

– The all-in-one Multi-Purpose Cradle (MPC) enhances usability in various locations. Whether
left free standing or mounted to a wall, the indicator is able to be tilted for easy viewing.

DIMENSIONS
