Peak 1983-10X Magnifying Lens with Scale, 10x Magnification
Peak 1983-10X Magnifying Lens with Scale, 10x Magnification

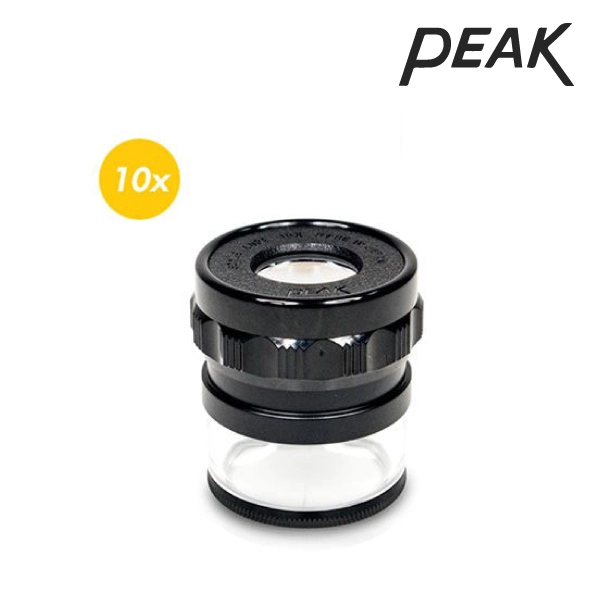

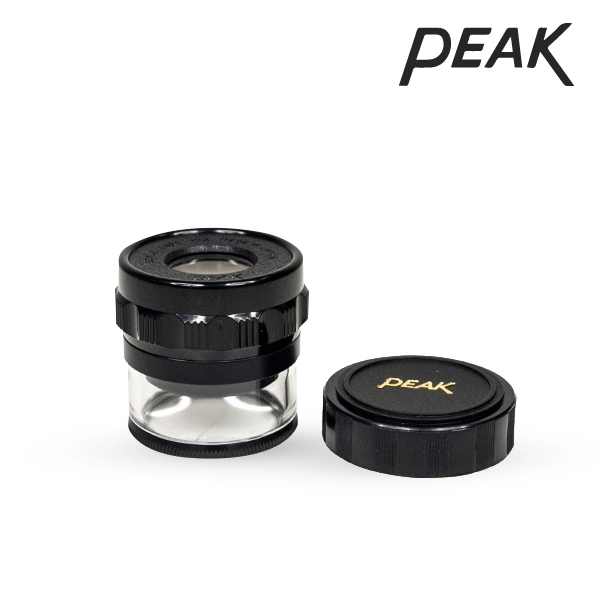

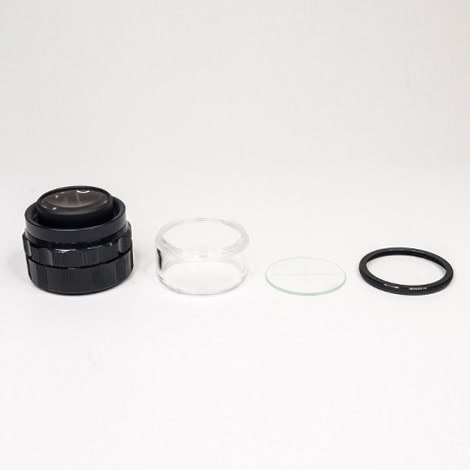

This Peak Scale Lupe 10X features a precisely crafted achromatic lens. It’s a 10x magnification head-mounted magnifier that includes a standard scale for measuring the size of objects being viewed. Users can change the scale, with various scale options available depending on the application. Ideal for examining small parts and details difficult to see with the naked eye. The acrylic tube is 360-degree transparent for optimal light transmission, durable, and compact (ø46 x 44 mm, 74g). Peak brand, Japan.
Specification
Model | 1983-10X | Standard Scale |
Magnification | 10x | |
Minimum Scale Division | 0.1 mm | |
Scale Length | 30 mm | |
Field of view | 32 mm | |
Eye-piece | 20 mm | |
Lens | Glass | |
Adjust focus | Yes | |
Dimension / Weight | ø46 x 44 mm / 74g |
