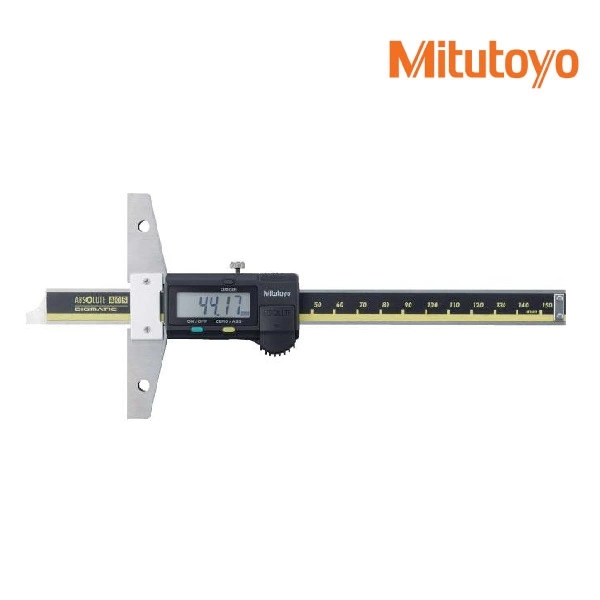

MITUTOYO SERIES 571 ABSOLUTE DIGIMATIC DEPTH GAGE

FEATURES

ABSOLUTE Digimatic Depth Gage can keep track of the origin point, once set, for the entire life of the battery.
Base and measuring faces are hardened and micro-lapped.
Optional wider extension base are available. (up to 450mm range models)
With SPC data output.

SKU: TMI-196 Categories: Dimension, Products

Description
Additional information

Download: Mitutoyo Series 571 Data Sheet

SPECIFICATIONS

Metric

Range	Order No.	Resolution	Accuracy	Mass(g)
0 – 150mm	571-201-30	0.01mm	±0.02mm	192
0 – 150mm	571-251-20*	0.01mm	±0.02mm	199
0 – 200mm	571-202-30	0.01mm	±0.02mm	212
0 – 200mm	571-252-20*	0.01mm	±0.02mm	219
0 – 300mm	571-203-20	0.01mm	±0.03mm	310
0 – 300mm	571-253-10*	0.01mm	±0.03mm	320
0 – 450mm	571-204-10	0.01mm	±0.05mm	1270
0 – 600mm	571-205-10	0.01mm	±0.05mm	1400
0 – 750mm	571-206-10	0.01mm	±0.06mm	1530
0 – 1000mm	571-207-10	0.01mm	±0.07mm	1760

*IP67 Coolant-Proof model

Inch/Metric

Range	Order No.	Resolution	Accuracy	Mass(g)
0 – 6” / 0 – 150mm	571-211-30	.0005” / 0.01mm	±.001”	192
0 – 6” / 0 – 150mm	571-261-20*	.0005” / 0.01mm	±.001”	199
0 – 8” / 0 – 200mm	571-212-30	.0005” / 0.01mm	±.001”	212
0 – 8” / 0 – 200mm	571-262-20*	.0005” / 0.01mm	±.001”	219
0 – 12” / 0 – 300mm	571-213-10	.0005” / 0.01mm	±.0015”	310
0 – 12” / 0 – 300mm	571-263-10*	.0005” / 0.01mm	±.0015”	320
0 – 18” / 0 – 450mm	571-214-10	.0005” / 0.01mm	±.002”	1270
0 – 24” / 0 – 600mm	571-215-10	.0005” / 0.01mm	±.002”	1400
0 – 30” / 0 – 750mm	571-216-10	.0005” / 0.01mm	±.0025	1530
0 – 40” / 0 – 1000mm	571-217-10	.0005” / 0.01mm	±.0025	1760

*IP67 Coolant-Proof model

Brand	MITUTOYO
