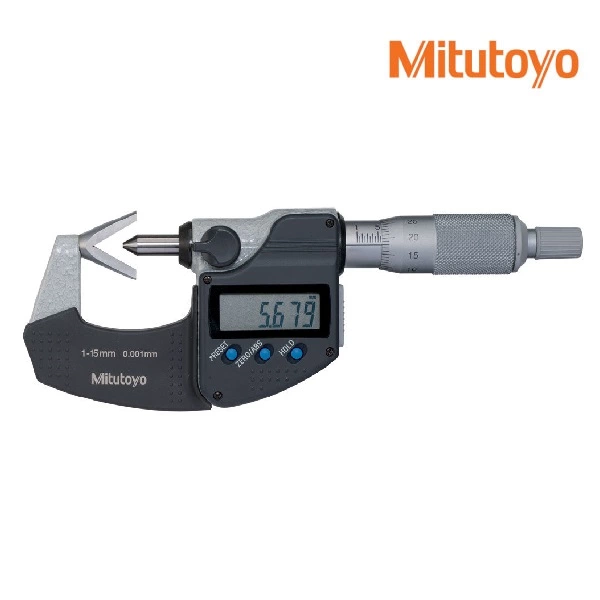

MITUTOYO SERIES 314, 114 V-ANVIL MICROMETERS

3 Flutes and 5 Flutes

FEATURES

Measures the outside diameter of cutting tools (such as taps, reamers, end mills) with an odd number of flutes.
With ratchet stop for constant force.
Supplied with setting standard.
Non-slip grip finish (digital models).
V-anvils with a centerline groove are available. They are useful for measuring pitch diameters of taps which have a small diameter by using single-wire method.
With SPC output (Series 314).
Supplied in fitted plastic case.

SKU: TMI-61 Categories: Dimension, Products

Download: Mitutoyo Series 314, 114 Data Sheet

SPECIFICATIONS

Metric Digital model for 3 flutes cutting head

Range	Resolution	Order No.	Accuracy	Remarks	Setting Standard	Mass (g)
1 – 15mm	0.001mm	314-251-30	±4µm	w/Groove	ø5mm	275
1 – 15mm	0.001mm	314-261-30	±4µm	—	ø5mm	275
10 – 25mm	0.001mm	314-252-30	±4µm	w/Groove	ø10mm	410
10 – 25mm	0.001mm	314-262-30	±4µm	—	ø10mm	410
25 – 40mm	0.001mm	314-253-30	±5µm	—	ø25mm	465

Inch/Metric Digital model for 3 flutes cutting head

Metric For 3 flutes cutting head

Range	Graduation	Order No.	Accuracy	Setting Standard	Remarks	Mass (g)
1 – 15mm	0.01mm	114-101	±4µm	ø5mm	w/Groove	120
1 – 15mm	0.01mm	114-161	±4µm	ø5mm	—	120
10 – 25mm	0.01mm	114-102	±4µm	ø10mm	w/Groove	280
10 – 25mm	0.01mm	114-162	±4µm	ø10mm	—	280
2.3 – 25mm	0.01mm	114-204*	±4µm	ø5mm	—	290
25 – 40mm	0.01mm	114-103	±5µm	ø25mm	—	400
40 – 55mm	0.01mm	114-104	±6µm	ø40mm	—	465
55 – 70mm	0.01mm	114-105	±6µm	ø55mm	—	675
70 – 85mm	0.01mm	114-106	±7µm	ø70mm	—	910

*Carbide-tipped anvil

Metric For 5 flutes cutting head

Range	Graduation	Order No.	Accuracy	Setting Standard	Remarks	Mass (g)
5 – 25mm	0.01mm	114-121	±4µm	ø5mm	w/Groove	255
5 – 25mm	0.01mm	114-165	±4µm	ø5mm	—	255
2.3 – 25mm	0.01mm	114-137*	±4µm	ø5mm	—	220
25 – 45mm	0.01mm	114-122	±5µm	ø25mm	—	400
45 – 65mm	0.01mm	114-123	±6µm	ø55mm	—	540
65 – 85mm	0.01mm	114-124	±7µm	ø70mm	—	760

*Carbide-tipped anvil

Inch For 3 flutes cutting head

*Carbide-tipped anvil and .0001″ reading is obtained with vernier.

Inch For 5 flutes cutting head

Range	Graduation	Order No.	Accuracy	Setting Standard	Mass (g)
.09 – 1″	.0001”	114-135	±.0002″	ø.2”	255
