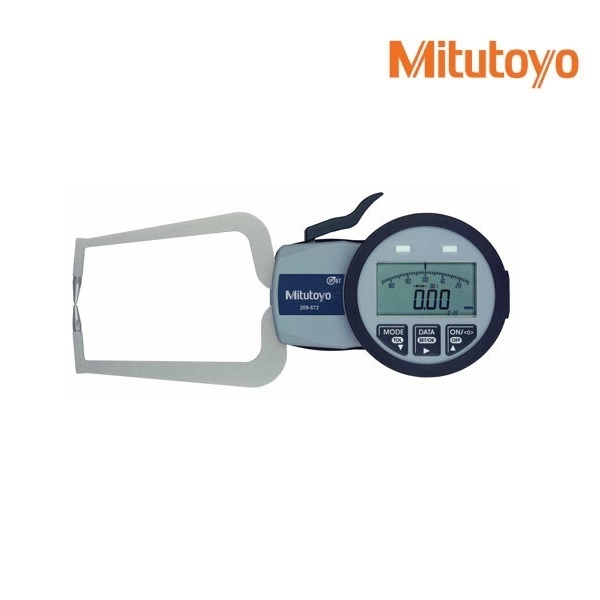

MITUTOYO SERIES 209 DIGIMATIC CALIPER GAGES

External Tube Thickness Measurement

Versatile OD measuring gages for groove thickness, tube thickness and hard-to-reach dimensions. Digimatic Caliper Gages provide error-free LCD readings, as well as data out-put for SPC analysis.

SKU: TMI-303 Categories: Dimension, Products

Description
Additional information

Download: Mitutoyo Series 209 Data Sheet

SPECIFICATIONS

Inch/Metric

Range	Order No.	Resolution	Accuracy	Max. Measuring Depth L	Measuring Contact length Hb	Measuring Contact length Hf	Type of Measuring Contact/type of set up	Mass(g)
0 – .39″/ 0-10mm	209-570	.0002″/0.005mm	.0008″/ 0.05mm	1.37″/35mm	.75″ /19.1mm	.73″/ 18.6mm	Ball .059″/1.5mm dia. Both/ A	240
0 – .39″/ 0-10mm	209-571	.0002″/0.005mm	.001″/ 0.02mm	1.37″/35mm	.85″/21.7mm	.58″/ 14.8mm	Desc .24″/ 6mm dia. Both/ C	175
0 – .78″/ 0-20mm	209-572	.0005″/0.01mm	.0015″/ 0.03mm	3.2″/85mm	.97″/24.7mm	.97″/ 24.6mm	Ball .059″/1.5mm dia. Both/ A	280
0 – .78″/ 0-20mm	209-573	.0005″/0.01mm	.0015″/ 0.03mm	3.2″/80mm	.97″/24.7mm	.10″/ 2.5mm	Ball .059″/1.5mm dia. Both/ B	270
0-1.18”/0-30mm	209-913	.001″/0.02mm	.002″/0.04mm	4.5″/114mm	1.17″/30mm	1.17″/30mm	Ball Ø.12″/3mm A	430
0-1.18”/0-30mm	209-914	.001″/0.02mm	.002″/0.04mm	4.58″/116mm	1.17″/30mm	.16″/4mm	Ball Ø.12″/3mm B	410
0-1.18”/0-30mm	209-915	.001″/0.02mm	.002″/0.04mm	4.56″/116mm	1.42″/36mm	.94″/24mm	Disc Ø1.97″/50mm D	430
0-1.97”/0-50mm	209-918	.001″/0.02mm	.002″/0.04mm	6.57″/167mm	1.17″/30mm	1.17″/30mm	Ball Ø.12″/3mm A	490
0-1.97”/0-50mm	209-919	.001″/0.02mm	.0024″/0.06mm	6.57″/167mm	1.17″/30mm	.18″/4.6mm	Ball Ø.12″/3mm B	460
0-1.97”/0-50mm	209-920	.001″/0.02mm	.003″/0.08mm	6.57″/167mm	1.42″/36mm	.94″/24mm	Disc Ø1.97″/50mm both/D	500
