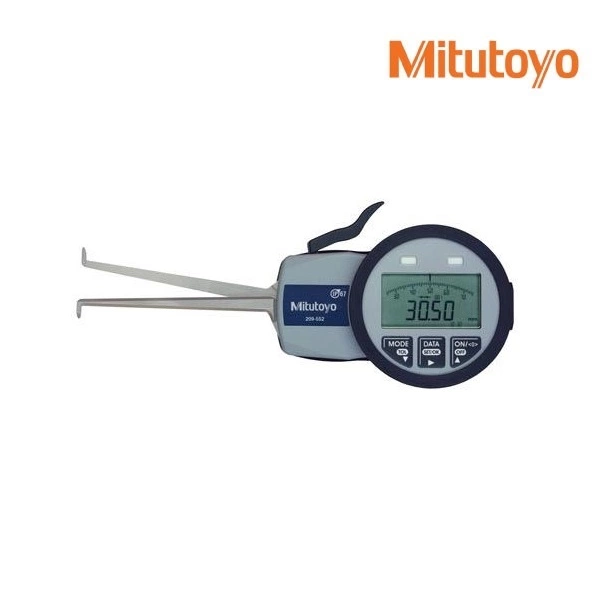

MITUTOYO SERIES 209 DIGIMATIC CALIPER GAGES

Internal Tube Thickness Measurement

Versatile ID measuring gages for hole diameters, groove thickness, tube diameter and hard-to-reach dimensions. The Digimatic Caliper Gages provide error-free LCD readings, as well as data output for SPC analysis.

SKU: TMI-302 Categories: Dimension, Products

Description
Additional information

Download: Mitutoyo Series 209 Data Sheet

SPECIFICATIONS

Inch/Metric

Range	Order No.	Resolution	Accuracy	Max. Measuring Depth L	Max. Groove Depth A	Min. Groove Width B	Type of Measuring Contact	Mass(g)
.10 -.49″/ 2.5 -12.5mm	209-550	.0002″/ 0.005mm	.0008″/ 0.015mm	.47″/ 12mm	.027″/0.7mm	.023″/ 0.5mm	Chisel R .0039″/ 0.1mm	225
.20 -.59″/ 5 -15mm	209-551	.0002″/ 0.005mm	.0008″/ 0.015mm	1.37″/ 35mm	.09″/ 2.3mm	.032″/ 0.8mm	Ball .024″/ 0.6mm dia.	230
.39 -1.18″/ 10-30mm	209-552	.0005″/ 0.01mm	.0015″/ 0.03mm	3.3″/ 85mm	.19″/ 5.2mm	.06″/ 1.2mm	Ball .04″/ 1mm dia.	250
.79 -1.58″/ 20-40mm	209-553	.0005″/ 0.01mm	.0015″/ 0.03mm	3.3″/ 85mm	.26″/ 7mm	.06″/ 1.2mm	Ball .04″/ 1mm dia.	250
1.18 -1.97″/ 30-50mm	209-554	.0005″/ 0.01mm	.0015″/ 0.03mm	3.3″/ 85mm	.26″/ 7mm	.06″/ 1.2mm	Ball .04″/ 1mm dia.	255
1.58 -2.36″/ 40-60mm	209-555	.0005″/ 0.01mm	.0015″/ 0.03mm	3.3″/ 85mm	.31″/ 8.3mm	.06″/ 1.2mm	Ball .04″/ 1mm dia.	265
1.97 -2.75″/ 50-70mm	209-556	.0005″/ 0.01mm	.0015″/ 0.03mm	3.3″/ 85mm	.31″/ 8.3mm	.06″/ 1.2mm	Ball .04″/ 1mm dia.	265
2.36 -3.15″/ 60-80mm	209-557	.0005″/ 0.01mm	.0015″/ 0.03mm	3.3″/ 85mm	.31″/ 8.3mm	.06″/ 1.2mm	Ball .04″/ 1mm dia.	270
2.75 – 3.54″/ 70-90mm	209-558	.0005″/ 0.01mm	.0015″/ 0.03mm	3.3″/ 85mm	.31″/ 8.3mm	.06″/ 1.2mm	Ball .04″/ 1mm dia.	270
0.51 – 1.69”/13-43mm	209-904	.001″/0.02mm	.002″/0.04mm	5.0″/127mm	.177″/4.5mm	.079″/2.0mm	Ball Ø.05″/1.3mm	360
1.18 – 2.36”/ 30-60mm	209-906	.001″/0.02mm	.002″/0.04mm	5.2″/132mm	.256″/6.5mm	.098″/2.5mm	Ball Ø.06″/1.5mm	370
1.97 – 3.15”/ 50-80mm	209-907	.001″/0.02mm	.002″/0.04mm	5.2″/132mm	.335″/8.5mm	.098″/2.5mm	Ball Ø.08″/2mm	370
2.76 – 3.94”/ 70-100mm	209-908	.001″/0.02mm	.002″/0.04mm	5.2″/132mm	.335″/8.5mm	.098″/2.5mm	Ball Ø.08″/2mm	375
3.54 – 4.72”/ 90-120mm	209-909	.001″/0.02mm	.002″/0.04mm	5.2″/132mm	.335″/8.5mm	.098″/2.5mm	Ball Ø.08″/2mm	380
0.59 – 2.56”/ 15-65mm	209-905	.001″/0.02mm	.0024″/0.06mm	7.4″/188mm	.196″/5mm	.087″/2.2mm	Ball Ø.06″/1.5mm	415
1.57 – 3.54”/ 40-90mm	209-910	.001″/0.02mm	.0024″/0.06mm	7.56″/192mm	.315″/8mm	.098″/2.5mm	Ball Ø.08″/2mm	420
