192-670-10-mitutoyo-1

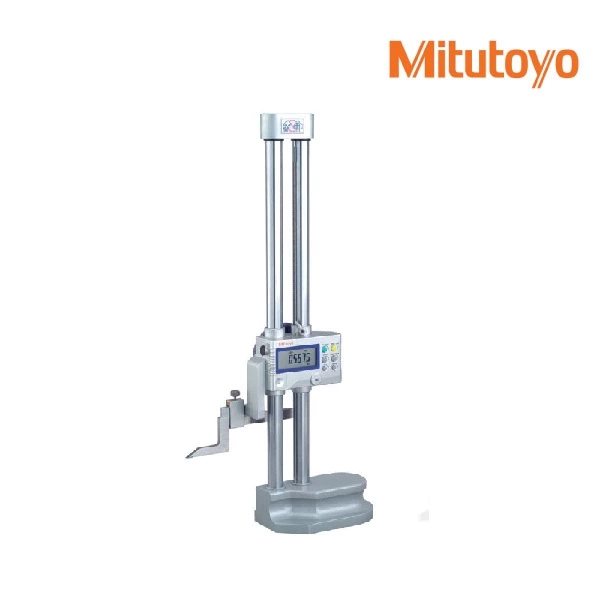

MITUTOYO SERIES 192 DIGIMATIC HEIGHT GAGE

Multi-Function Type with SPC Data Output

FEATURES

Highly versatile multi-function type.
Carbide-tipped long scriber is provided.
Rigid construction ensures repeatable measurement.
Switchable resolution (.0002″/0.005mm or .0005″/0.01mm)
Coarse/fine feed switching.
Bi-directional touch-signal probe is an optional accessory. It can quickly and accurately measure steps, inside width and outside width.
With SPC data output.
Two preset reference heights.

SKU: TMI-184 Categories: Dimension, Products

Description
Additional information

Download: Mitutoyo Series 192 Data Sheet

SPECIFICATIONS

Inch/Metric

Range	Order No.	Accuracy	Resolution	Mass (kg)
0-12”/0-300mm	192-670-10	±001”	.0005”(0.01mm) [.0002”(0.005mm) Switchable)]	5.7
0-18”/0-450mm	192-671-10	±0015”	.0005”(0.01mm) [.0002”(0.005mm) Switchable)]	7.5
0-24”/0-600mm	192-672-10	±0015”	.0005”(0.01mm) [.0002”(0.005mm) Switchable)]	8.3
0-40”/0-1000mm	192-673-10	±0025”	.0005”(0.01mm) [.0002”(0.005mm) Switchable)]	15.7

Metric

Range	Order No.	Accuracy	Resolution	Mass (kg)
0-300mm	192-663-10	±0.02mm	Switchable between 0.01mm and 0.005mm	5.7
0-600mm	192-664-10	±0.04mm	Switchable between 0.01mm and 0.005mm	8.3
0-1000mm	192-665-10	±0.06mm	Switchable between 0.01mm and 0.005mm	15.7

Brand	MITUTOYO
