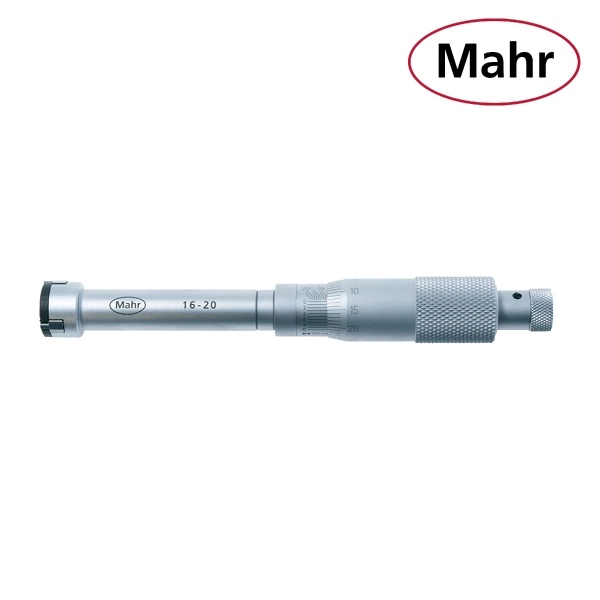

Download: Mahr Micromar 44 A Data Sheet
TECHNICAL DATA
Order no. | Product type | Measuring range | Graduation value | Error limit | Spindle thread pitch | Standard | Measuring depth | Measuring depth with extension |
mm | mm | μm | mm | mm | mm | |||
4190310 | 44 A | 6 – 8 | 0.001 | 4 | 0.5 | DIN 863– 4 | 58 | 133 |
4190311 | 44 A | 8 – 10 | 0.001 | 4 | 0.5 | DIN 863– 4 | 58 | 133 |
4190312 | 44 A | 10 – 12 | 0.001 | 4 | 0.5 | DIN 863– 4 | 58 | 133 |
4190313 | 44 A | 12 – 16 | 0.001 | 4 | 0.5 | DIN 863– 4 | 64 | 139 |
4190314 | 44 A | 16 – 20 | 0.001 | 4 | 0.5 | DIN 863– 4 | 64 | 139 |
4190315 | 44 A | 20 – 25 | 0.005 | 4 | 0.5 | DIN 863– 4 | 68 | 218 |
4190316 | 44 A | 25 – 30 | 0.005 | 4 | 0.5 | DIN 863– 4 | 68 | 218 |
4190317 | 44 A | 30 – 40 | 0.005 | 4 | 0.5 | DIN 863– 4 | 76 | 226 |
4190319 | 44 A | 40 – 50 | 0.005 | 4 | 0.5 | DIN 863– 4 | 76 | 226 |
4190320 | 44 A | 50 – 60 | 0.005 | 5 | 0.5 | DIN 863– 4 | 79 | 229 |
4190321 | 44 A | 60 – 70 | 0.005 | 5 | 0.5 | DIN 863– 4 | 79 | 229 |
4190012 | 44 A | 70 – 85 | 0.005 | 5 | 0.5 | DIN 863– 4 | 97 | 247 |
4190013 | 44 A | 85 – 100 | 0.005 | 5 | 0.5 | DIN 863– 4 | 97 | 247 |
4190014 | 44 A | 100 – 125 | 0.005 | 6 | 0.5 | DIN 863– 4 | 132 | 282 |
4190015 | 44 A | 125 – 150 | 0.005 | 6 | 0.5 | DIN 863– 4 | 132 | 282 |
4190016 | 44 A | 150 – 175 | 0.005 | 7 | 0.5 | DIN 863– 4 | 132 | 282 |
4190017 | 44 A | 175 – 200 | 0.005 | 7 | 0.5 | DIN 863– 4 | 132 | 282 |
