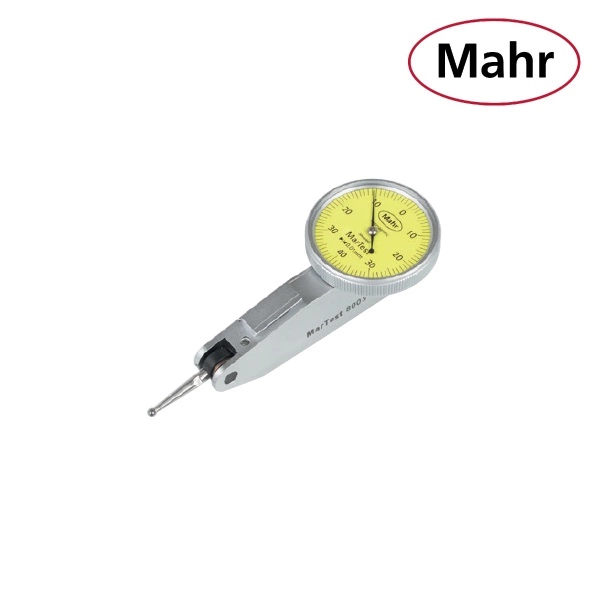

Download: Mahr MarTest 800 S / 800 S-R / 800 SG / 800 SG-R / 800 SR / 800 SA / 800 SGA Data Sheet
TECHNICAL DATA
Order no. | 4305200 | 4305205 | 4307200 | 4307205 | 4307250 | 4301200 | 4301250 | |
Product type | 800 S | 800 S-R | 800 SG | 800 SG-R | 800 SR | 800 SA | 800 SGA | |
Measuring range | mm | ± 0.4 | ± 0.8 | ± 0.25 | ||||
Graduation value | mm | 0.01 | ||||||
Measuring surface | carbide | ruby | carbide | ruby | carbide | |||
Scale diameter | mm | 28 | 38 | 28 | 38 | |||
Type of dial face | 40– 0– 40 | 25– 0– 25 | ||||||
Dial color | Yellow | |||||||
Measuring force | N | 0.15 | 0.1 | |||||
Range per rev. | mm | 0.8 | 0.5 | |||||
Deviation range fe | μm | 10 | 5 | |||||
Total deviation range fges | μm | 13 | 14 | 8 | ||||
Hysteresis fu | μm | 3 | 4 | 3 | ||||
Partial measuring span ft | μm | 5 | ||||||
Repeatability fw | μm | 3 | ||||||
Standard | DIN 2270 | Factory standard |
