MarCal 16 EMRi-LI,16 EWR-LI

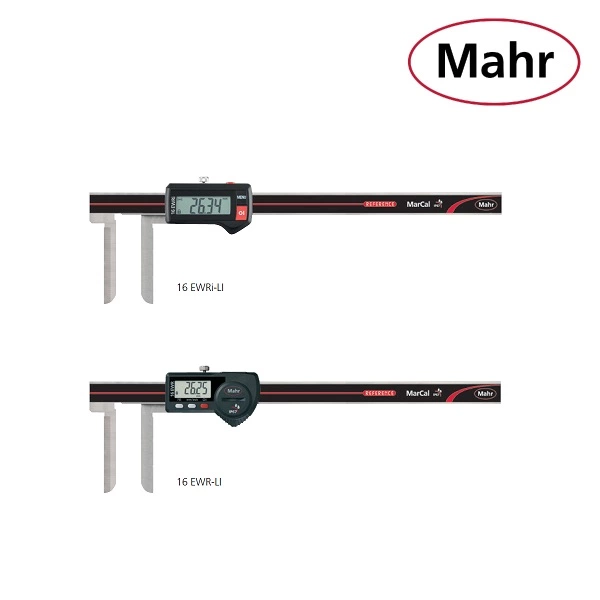

Mahr MarCal 16 EWRi-LI / 16 EWR-LI Digital Caliper for Special Applications

FEATURES : 16 EWRI-LI

Digit height : 11 mm
Data interface : Integrated wireless
Energy supply : Battery life approx. 3 years (approx. 0.5 in wireless mode)
IP protection category : IP 67
Package contains : battery, instruction manual, case
SoftwareMarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS232 interface)

FEATURES : 16 EWR-LI

Digit height : 8.5 mm
Data interface : USB, Opto RS232C, Digimatic
Energy supply : Battery life approx. 3 years

SKU: TMA-40 Categories: Dimension, Products

Description
Additional information

Download: Mahr MarCal 16 EWRi-LI / 16 EWR-LI Data Sheet

FUNCTIONS : 16 EWRI-LI

ON/OFF
AUTO-ON / OFF
mm/inch
LOCK function (key lock)
RESET (set display to zero)
PRESET (for entering a numerical value)
DATA (data transmission)
HOLD (storage of measured values)

FUNCTIONS : 16 EWR-LI

ON/OFF
AUTO-ON / OFF
mm/inch
LOCK function (key lock)
RESET (set display to zero)
PRESET (for entering a numerical value)
DATA (data transmission via connection cable)
High contrast analog display
Locking screw above
Lapped guideway
Measuring blade for inside measurements
Slide and beam made of hardened stainless steel
Immediate measurements due to the Reference System
Raised guideway for the protection of the scale
Excellent resistance against dust, coolants and lubricants
Dirt wipers are integrated in the slide

TECHNICAL DATA

Order no.	Type	Measuring range Measuring range inch		Numerical increment	Error limit Error limit inches (text)		Standard	Depth rod
mm			inch	mm/inch	mm	inch
4103385	16 EWRi-LI	10 – 200	0.4 – 8”	0.01 / .0005”	0.05	.002”	Factory standard	none
4103085	16 EWR-LI	10 – 200	0.4 – 8”	0.01 / .0005”	0.05	.002”	Factory standard	none

Brand	Mahr
