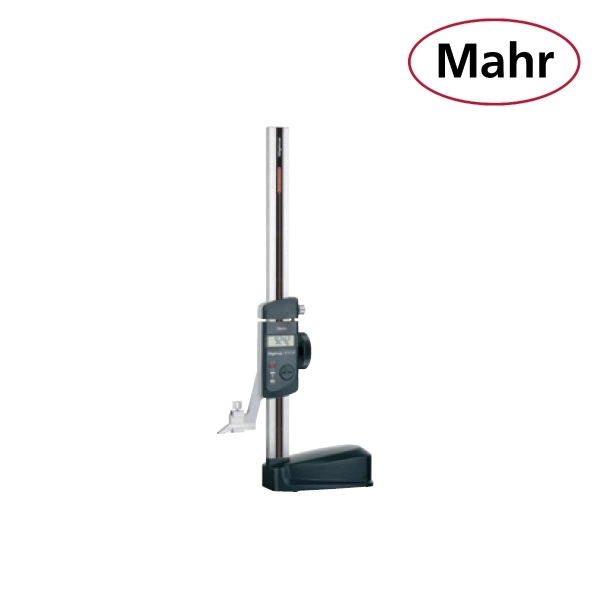

Download: Mahr Digimar 814 SR Data Sheet
FUNCTIONS
- RESET (set display to zero)
- mm/inch
- ABS (switch between relative and absolute measurement)
- Lock/Unlock
- PRESET (for entering a numerical value)
- DATA (data transmission via connection cable)
- AUTO-ON / OFF
TECHNICAL DATA
Order no. | 4426100 | 4426101 | |
Product type |
814 SR |
||
Measuring range | mm | 0 –350 | 0 – 600 |
Measuring range | inch | 0 –14” | 0 –24” |
Resolution | mm | 0.01 | |
Resolution | inch | .0005” | |
Error limit | µm | 40 | 50 |
Operating time max. | h | 4000 | |
Operating temperature | °C | 10 – 40 | |
Product weight | kg | 7.00 | 8.00 |
Data interface |
Opto RS232C, Digimatic, USB, Wireless |
||
Standard |
Factory standard |
