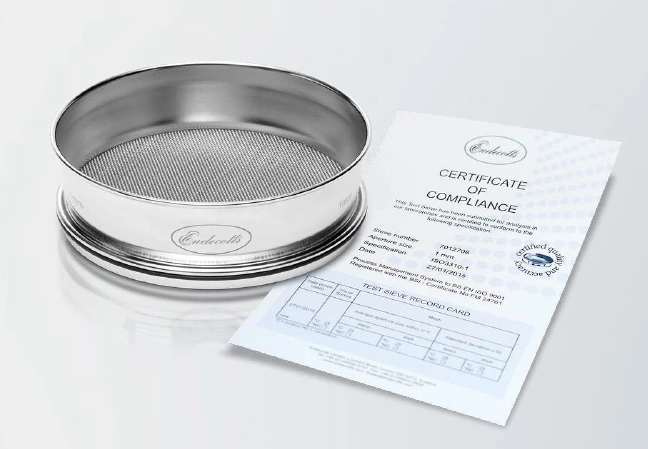

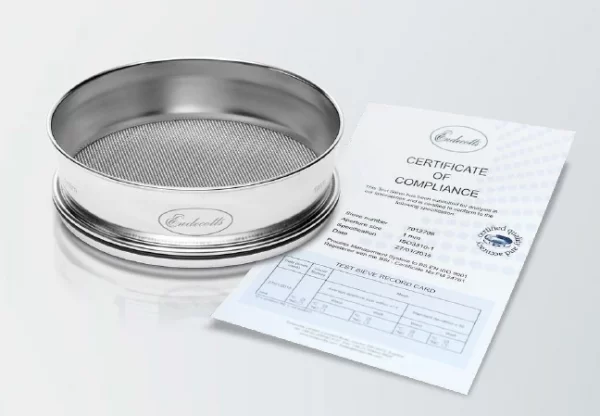

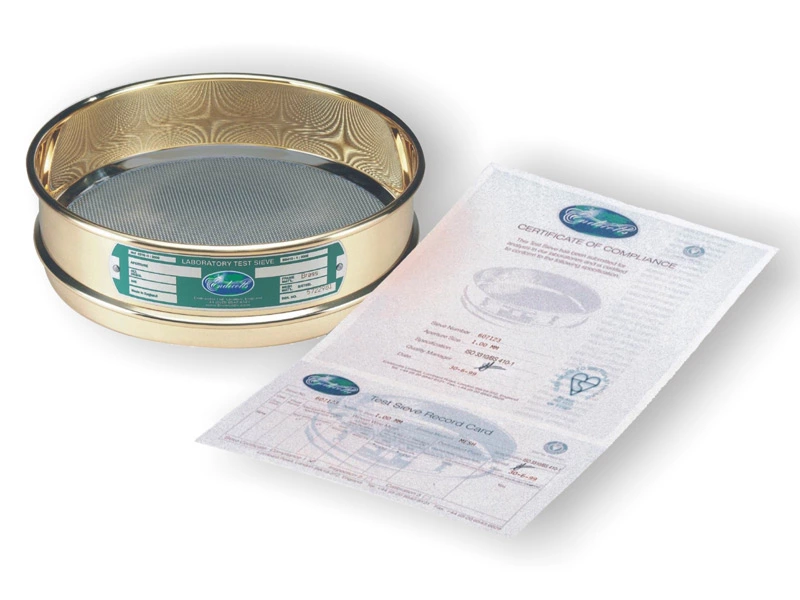

ENDECOTTS AMERICAN STANDARD SIEVE ASTM E11 TEST SIEVE

ENDECOTTS AMERICAN STANDARD SIEVE ASTM E11 TEST SIEVE

ENDECOTTS AMERICAN STANDARD SIEVE ASTM E11 TEST SIEVE

SKU: SIEVE Categories: Dimension, Products

Description
Additional information

SPECIFICATIONS

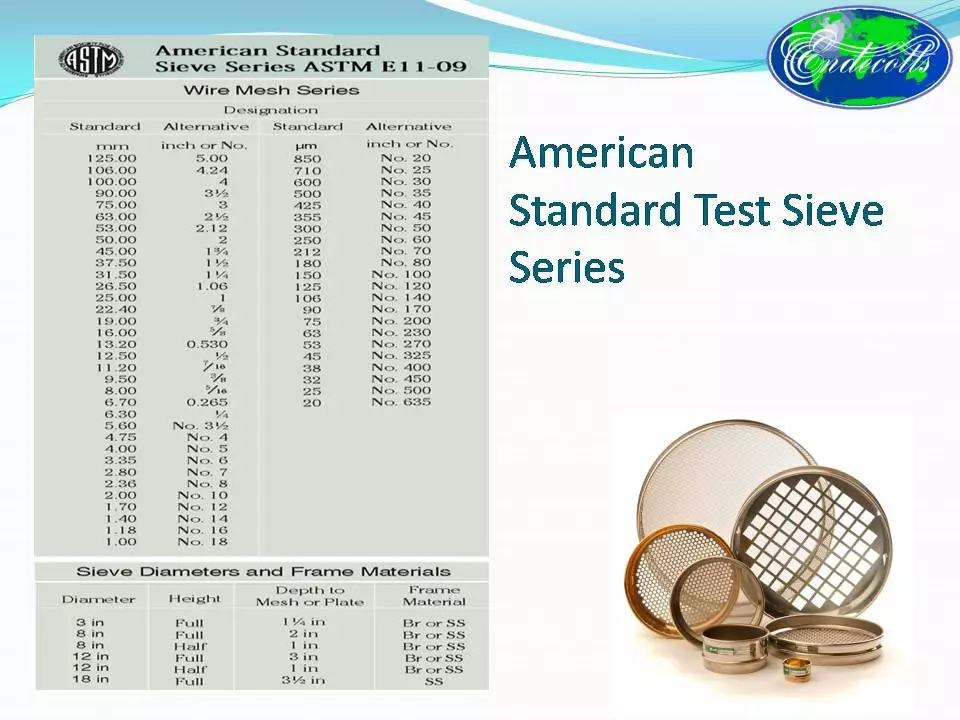

American Standard Sieve Series ASTM E11

Wire Mesh Series
Designation
Standard	Alternative
mm	5 in
125.00	5 in
106.00	4.24 in
100.00	4 in
90.00	3½ in
75.00	3 in
63.00	2½ in
53.00	2.12 in
50.00	2 in
45.00	1¾ in
37.50	1½ in
31.50	1¼ in
26.50	1.06 in
25.00	1 in
22.40	7 8 in
19.00	¾ in
16.00	5 8 in
13.20	0.530 in
12.50	½ in
11.20	7 16 in
9.50	3 8 in
8.00	5 16 in
6.70	0.265 in
6.30	¼ in
5.60	No. 3½
4.75	No. 4
4.00	No. 5
3.35	No. 6
2.80	No. 7
2.36	No. 8
2.00	No. 10
1.70	No. 12
1.40	No. 14
1.18	No. 16
1.00	No. 18
µm
850	No. 20
710	No. 25
600	No. 30
500	No. 35
425	No. 40
355	No. 45
300	No. 50
250	No. 60
212	No. 70
180	No. 80
150	No. 100
125	No. 120
106	No. 140
90	No. 170
75	No. 200
63	No. 230
53	No. 270
45	No. 325
38	No. 400
32	No. 450
25	No. 500
20	No. 635

Brand	Endecotts
